Solid Drilled Flanged Thermowell

WINNERS flanged thermowells are machined from solid bar stock, offering a rugged and durable construction suitable for demanding applications. The flange is welded to the stem, and the instrument connection can be supplied with either BSP or NPT threads as required.

Features

• Solid bar stock drilled construction

• Rugged and durable for demanding applications

• Vibration and fatigue resistant

• Corrosion-resistant materials

• Easy maintenance without process shutdown

• Compliant with international standards – safe and reliable

REQUEST A QUOTE

Product Detail

Product Tags

Solid-Drilled Flanged Thermowell | Thermocouple & RTD Protection Tube

Flanged thermowells protect temperature sensing elements such as thermocouples and RTDs from high temperature, high pressure, high flow velocity, or corrosive media, ensuring safe and reliable temperature measurement. With a flanged thermowell, the internal sensing element can be replaced or maintained online without shutting down the process, greatly improving industrial process availability and ease of maintenance.

WINNERS flanged thermowells are manufactured by drilling from solid bar stock, offering high strength and excellent integrity to withstand demanding conditions such as high pressure, high flow velocity, and highly corrosive media. The flange and stem are welded together, and the instrument connection can be supplied with BSPP, BSPT, or NPT threads for easy installation of RTD or thermocouple temperature sensors.

WINNERS flanged thermowells are designed in strict accordance with the ASME PTC 19.3 TW-2016 standard, ensuring long-term stable operation under severe service conditions.

Specifications

Product Name	Flanged Thermowells
Shank Style	Straight, Tapered, Stepped
Instrument Connection	1/2 NPT, other threads on request
Bore Size (mm)	6.6, 7.0, 8.2, 8.5, 9.0, 9.8, 10.2, 12.2, Other sizes available upon request.
Sealing Face	RF, FF, RTJ
Material	SS304, SS316L, Hastelloy C276, Monel 400, Nickel 200, Titanium, and other materials available upon request.
Insertion length (mm)	150, 200, 250, 300, Other sizes available upon request.
Optional	PTFE coating

Applications of Flanged Thermowells

Oil & Gas Industry: Refineries, offshore drilling platforms, oil pipelines, and other high-pressure process applications.

Chemical & Petrochemical Industry: Reactors, high-pressure vessels, pipelines for highly corrosive media, etc., used to protect sensors from chemical corrosion and high pressure.

Power Industry: Boilers, steam lines, turbines, and other high-temperature, high-pressure equipment.

Pipelines, Vessels, or Tanks: Can be used with RTD and thermocouple thermometers and installed in various industrial equipment.

How to order

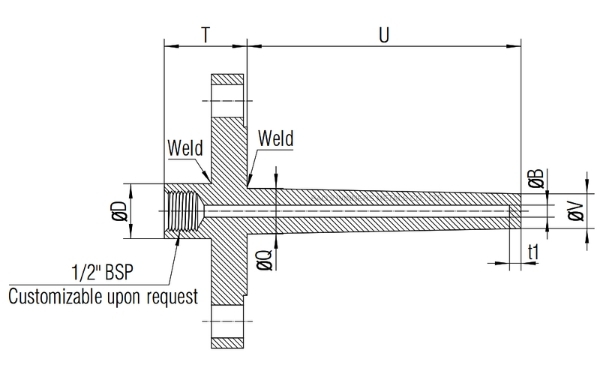

Flanged Thermowell Drawings-Dimensions-WINNERS

Ordering Information:

Material / Flange Size and Pressure Rating / Flange facing / Shank Type / Head Diameter Ø D / Instrument Connection / Bore Size Ø B / Sealing Surface / Insertion Length U / Connection Length T / Root Diameter Ø Q / Tip Diameter Ø V / Coating / Other Configurations
