Solid Drilled Threaded Thermowell
Product Description
Threaded thermowells protect thermocouples, RTDs, and other temperature sensors from high temperature, high pressure, high flow rates, or corrosive media, ensuring safe and reliable measurement. They are compact, easy to install, and cost-effective. With a threaded thermowell, sensors can be quickly installed or replaced without process shutdown.
Threaded thermowells are available with ¼″, ½″, ¾″, and 1″ NPT process connections. Other thread sizes can be customized upon request. The standard material is SS316L, with options including Hastelloy, Monel 400, Nickel 200, and titanium.
Specifications
| Product Name | Threaded Thermowells |
| Shank Type | Straight, Tapered, Stepped |
| Instrument Connection | 1/2” NPT, other thread sizes available upon request. |
| Process Connection | 1/4″, 1/2″, 3/4″ or 1″ NPT, other thread sizes available upon request. |
| Bore Size (mm) | 6.6, 8.5, Other sizes available upon request. |
| Material | SS304, SS316L, Hastelloy C276, Monel 400, Nickel 200, Titanium, Other materials available upon request. |
| Insertion length (mm) | 2.5”, Other sizes available upon request. |
Applications of Threaded Thermowells
• Food and Beverage
• Pharmaceutical Industry
• Petrochemical Industry
• Water Treatment and Environmental Engineering
How to order
Ordering Information:

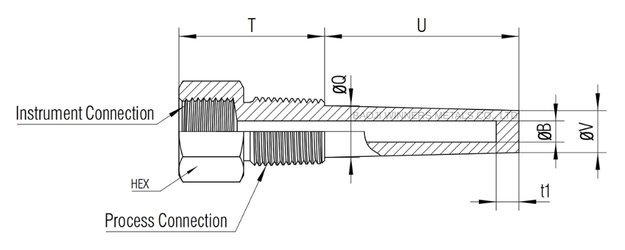

Shank Type / Process Connection / Instrument Connection / Insertion length U / Extension Length T / Material / Bore Size ∅B / Root Diameter ∅Q / Tip Diameter ∅V / Other Options
For a quote or selection parameters for threaded thermowells, please feel free to contact us.
