In industries such as petrochemical, power generation, pharmaceutical, and food processing, the accuracy and reliability of temperature measurement are directly tied to production safety and product quality. As critical protective components for temperature sensors (thermocouples and RTDs), flanged thermowells provide comprehensive protection for sensing elements under extreme conditions including high pressure, high flow velocity, and strong corrosion.
BAOJI WINNERS METALS CO., LTD. leverages years of technical expertise in industrial measurement and control to supply flanged thermowells that meet international standards to customers worldwide.
Solid Bar-Stock Drilled Construction – Superior Mechanical Strength and Corrosion Resistance

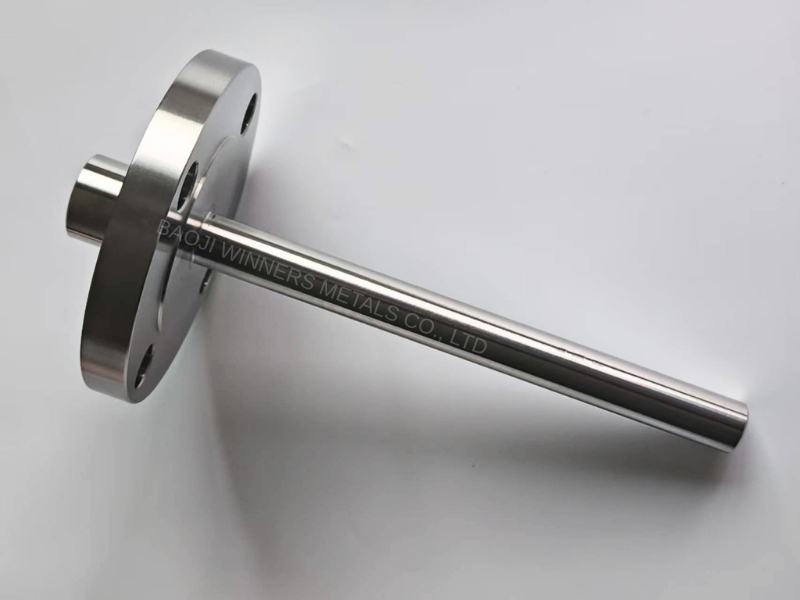

WINNERS METALS flanged thermowells are manufactured using a solid bar-stock drilling process. Unlike welded tube-type thermowells, the one-piece construction eliminates weld seam weak points, offering higher structural strength and overall integrity to withstand continuous impact from high-pressure, high-velocity media. The flange is welded to the thermowell body, further ensuring long-term sealing reliability under alternating stress in wetted parts.
Wide Range of Material Options
WINNERS METALS offers an extensive selection of materials to meet diverse application requirements. Standard materials include SS304/SS316L stainless steel.
For highly corrosive media, special alloys such as Hastelloy® C276, Monel 400, Nickel 200, and Titanium are available.
For processes involving strong corrosive agents such as chlorine, bromine, hydrochloric acid, nitric acid, and sulfuric acid, a tantalum sleeve can be provided to cover wetted parts, effectively extending thermowell service life in extreme corrosive environments. Additionally, PTFE coating is available for enhanced corrosion and anti-stick protection.
Product Configuration Options
- WINNERS METALS offers three stem designs: Straight, Tapered, and Stepped. Tapered thermowells provide faster response times, making them particularly suitable for temperature-sensitive control loops.
- Instrument connections are available with BSPP, BSPT, and NPT threads to accommodate various thermocouple and RTD temperature sensors. Flange sealing faces can be supplied in RF, FF, and RTJ types as required.
All products are designed in strict accordance with ASME PTC 19.3 TW-2016, ensuring long-term stable operation under critical service conditions.
Applications
• Oil & Gas Industry: Refineries, offshore drilling platforms, and long-distance oil/gas pipelines – providing reliable physical isolation and protection for temperature sensors in high-pressure processes.
• Chemical & Petrochemical Industry: Reactors, high-pressure vessels, and highly corrosive media pipelines – effectively resisting chemical corrosion and high-pressure impact to ensure long-term stability of temperature sensors.
• Power Industry: Boilers, steam lines, turbines, and other high-temperature, high-pressure equipment – providing durable protection for critical temperature monitoring points.
• Pharmaceutical & Biotechnology: Meeting strict hygienic and corrosion-resistant requirements, supporting sensor replacement online without production interruption.
• Food & Beverage Industry: Suitable for temperature measurement points requiring periodic calibration and sanitary operations.
• Water & Wastewater Treatment: Providing reliable temperature monitoring for various water treatment processes.
About WINNERS METALS
WINNERS METALS is a comprehensive enterprise specializing in the R&D, manufacturing, and sales of pressure, flow, and temperature measurement products. Guided by a customer-centric service philosophy, the company is committed to providing professional measurement and control solutions for industries including energy, chemical, manufacturing, and environmental protection.
We offer a full range of services including free drawing design, material certificates, and rapid non-standard customization. Available processing materials include stainless steel, tantalum, titanium, Hastelloy, and more, fully meeting the individual needs of customers across different industries.
